6 Port Full Gigabit Industrial Ethernet PoE+ POE Fiber Switch Din Rail 120W Budget OEM

Name: 6 Port Full Gigabit Industrial Ethernet PoE POE Fiber Switch Din Rail 120W Budget OEM
Brand: Olycom
Price: 1 USD

Quality 6 Port Full Gigabit Industrial Ethernet PoE+ POE Fiber Switch Din Rail 120W Budget OEM for sale

Brand Name : Olycom

Model Number : IM-FP244GE V1

Certification : CE RoHS FCC ISO9001

Place of Origin : Shenzhen, China

MOQ : 1pc

Price : Negotiable

Payment Terms : T/T, PayPal

Supply Ability : 3000pcs/month

Delivery Time : 3~7 working days

Packaging Details : 1pc in a carton, 0.45kg gross weight

Product name : Din rail Gigabit Ethernet Switch

Port : 6

Speed : 10/100/1000Mbps

Voltage : DC48V

POE budget : 120W

Dimension : 114*93*35mm

Contact Now

Gigabit industrial fiber switch with 4 port POE lan Ethernet

Basic Information of Din rail POE Fiber Switch

Network Ports: 4*Gigabit PoE+ Lan ports and 2*optical SFP slots
DIN-Rail/Wall Mounting: IP40 rated metal housing with DIN bracket
Redundant Power: DC48V~DC52V
Extreme Temperature: -40 ℃ to + 85 ℃
Support power on POE IP cameras through the wireless access point (AP) of 5 categories of Ethernet cable.
IEEE 802.3af/at power on to 1 ~ 4 RJ45 ports, 120W max POE budget

Specification of 6-port Gigabit Ethernet Switch

Product Name	10/100/1000Mbps Industrial POE Fiber Switch (2F+4TP)
Port	2x 1000Mpbs SFP ports SM:1310nm/1550nm, 20Km 1490nm/1550nm, 40~120Km MM:1310nm, 2Km; 850nm, 500 meters 4x10/100/1000M UTP RJ45(Support MDI/MDIX auto-sensing)
Switching features	Transmission mode:storage and forward System bandwidth:12Gbps (non-traffic jam) Packet Forwarding Rate:8.928Mpps MAC:4K Queue Buffer:1.75M
Network media	10BASE-T: CAT3, CAT4, CAT5 un-shielded twisted pair(≤100m) 100/1000BASE-TX: CAT5 or above shielded twisted pair(≤100m) SFP port, transmission distance: 20Km, 40Km, 60Km, 80Km, 100Km
LEDs	Power, network, fiber
Power supply	POE power supply input voltage: 48V (max 52V), Single PoE power supply output power: 15.4W (port 1~4) (802.3at standards required special instructions)

Environment	Working temperature:-40°～ 85°C Storage temperature:-40°～ 85°C Working humidity:10%～90%, non-condensing Storage humidity:10%～95%, non-condensing
Industry Standards	EMI:FCC Part 15 Subpart B Class A, EN 55022 Class A EMS:EN 61000-4-2 (ESD) Level 3, EN 61000-4-3 (RS) Level 3, EN 61000-4-4 (EFT) Level 3, EN 61000-4-5 (Surge) Level 3, EN 61000-4-6 (CS) Level 3, EN 61000-4-8 Traffic Control:NEMA-TS2 Vibration:IEC 60068-2-6 Freefall:IEC 60068-2-32 Shock:IEC 60068-2-27 Rail Traffic:EN 50121-4
Safety	CE Mark ,commercial CE/LVD EN60950
Mechanical information	Shell:Corrugated metal shell Safety class:IP40 Dimension: 113.8 x 93 x 34.9mm Mounting method:Din-rail mounting Weight: 0.35kg
Warranty	Replacement within 1 year; 3 years repairing

Key Features of Industrial POE Fiber Switch

4x 10/100/1000Mbps Auto-sensing RJ45 ports
2x 1000Mbps SFP fiber ports
4KV Ethernet surge protection, adapt to a harsh outdoor environment
Support Auto MDI/MDIX
Flow control mode: full duplex with IEEE 802.3x standard, half-duplex with Back pressure standard
IEEE 802.3 10Base-T and IEEE 802.3u 100Base-TX compliant
Max power to 15.4W under af standard, 30W under at standard to each PoE port
Detect the PoE models of electrical equipment.
A store-and-forward switching mechanism

Dimension of Industrial Fiber Optical Switch

6 Port Full Gigabit Industrial Ethernet PoE+ POE Fiber Switch Din Rail 120W Budget OEM

Application of Industrial Ethernet Switch

6 Port Full Gigabit Industrial Ethernet PoE+ POE Fiber Switch Din Rail 120W Budget OEM

OEM

There are different requirements regarding OEM services.

Change the front mask
Print customer logo
Change the mounting method

All is supportive, please let us know if you have any specific needs.

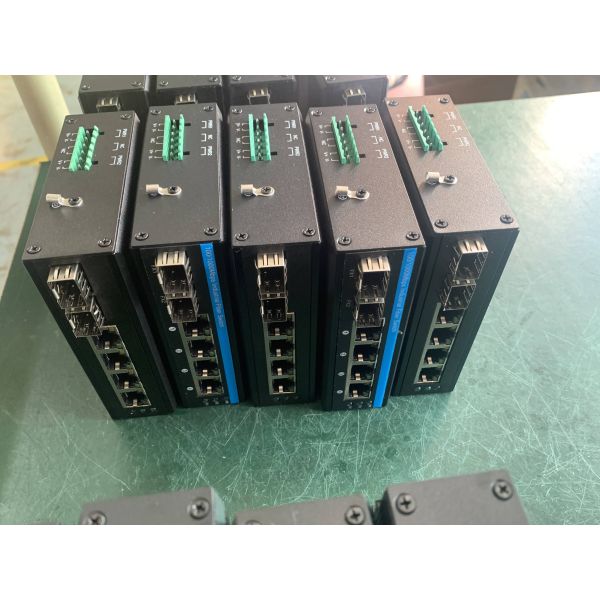

Actual Photos of 4 port POE Switch

6 Port Full Gigabit Industrial Ethernet PoE+ POE Fiber Switch Din Rail 120W Budget OEM
